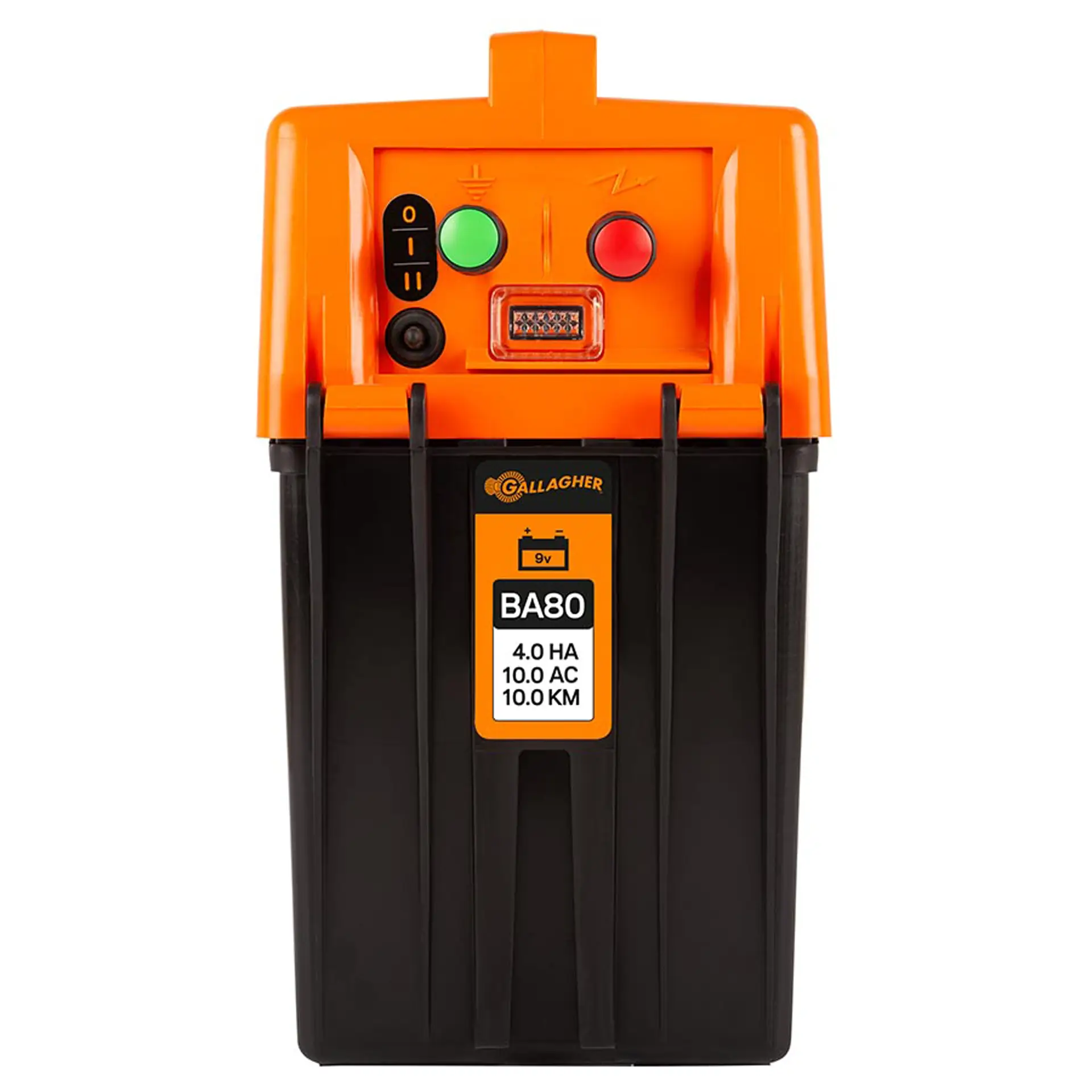

BA80 9V battery energiser (0.8J - 9V/12V)
- Up to 10 km (with multi-wire fences)
- Suitable for livestock, horses, game, pets and garden
- Compact and portable model
- Farmproof: splash-proof and extremely strong
- LED indicators - Displays battery and device status.
Description
The BA80 is the most powerful battery energiser in the BA series and is suitable for fencing of up to 10 km. This energiser has 2 different modes. In mode 1 the energiser provides a standard pulse with maximum Joules. In mode 2 the energiser provides 1 pulse of 100% followed by 3 pulses of 50%. It means the battery lasts much longer and you are still sure to have sufficient power on your fencing. Supplied with a connection cable set. Battery not included.
Specifications:
- Maximum output voltage (V): 9600
- Charging energy (J): 0.8
- Maximum impulse energy (J): 0.3
- Number of earthing rods required: 1 x 1 m
- No vegetation (km) (recommended): 10
- Light vegetation (km) (recommended): 5
- Dense vegetation (km) (recommended): 3
- Fence surface (ha) (recommended): 4
| Product number: | 356358 |
|---|---|
| 9V/12V connection: | ✓/✓ |
| Avg. current draw Battery (mA): | 90 |
| Avg. current draw safemode 12V Battery (mA): | - |
| Day savings option: | - |
| Fencecable included: | ✓ |
| Warranty (years): | 3 |
| IPX classification: | IPX4 |
| Recommended number of earth stakes: | 1x1m |
| Suitable for solar panel (minimal advised): | - |
| Suitable powersupply (Part No.): | - |
| Auto power conservation to prevent damage to battery: | @12V |
| Device indicator light On/Off: | ✓ |
| Battery LED (indicator): | ✓ |
| Battery safemode: | - |
| Battery performance - normal modus (days/VAh): | ^90 days / 9V210Ah |
| Grid area (Hec/Acre): | 4/10 |
| Multi (3) Wire Fence distance - Recommended (km): | 3 |
| Multi (2) Wire Fence distance - Ideal conditions (km): | 10 |
| Multi (2) Wire Fence distance - Light conditions (km) : | 6 |
| Single Wire Fence distance - Ideal conditions (km): | 24 |
| Output Energy (J): | 0,48 |
| Stored Energy (J): | 0,8 |
| Voltage with 100 Ohm (V): | 560 / 480 |
| Output with 500 Ohm (V): | 2200 / 2000 |
| Maximum output Voltage: | 9400 |
| Half power mode: | - |
| Night savings option: | - |
| Recommended Battery (minimal advised): | 9V-120Ah |
| Weight (Kg): | 1,6 |
€294.95
BA80 9V battery energiser (0.8J - 9V/12V)
- Up to 10 km (with multi-wire fences)
- Suitable for livestock, horses, game, pets and garden
- Compact and portable model
- Farmproof: splash-proof and extremely strong
- LED indicators - Displays battery and device status.
Description
The BA80 is the most powerful battery energiser in the BA series and is suitable for fencing of up to 10 km. This energiser has 2 different modes. In mode 1 the energiser provides a standard pulse with maximum Joules. In mode 2 the energiser provides 1 pulse of 100% followed by 3 pulses of 50%. It means the battery lasts much longer and you are still sure to have sufficient power on your fencing. Supplied with a connection cable set. Battery not included.
Specifications:
- Maximum output voltage (V): 9600
- Charging energy (J): 0.8
- Maximum impulse energy (J): 0.3
- Number of earthing rods required: 1 x 1 m
- No vegetation (km) (recommended): 10
- Light vegetation (km) (recommended): 5
- Dense vegetation (km) (recommended): 3
- Fence surface (ha) (recommended): 4
| Product number: | 356358 |
|---|---|
| 9V/12V connection: | ✓/✓ |
| Avg. current draw Battery (mA): | 90 |
| Avg. current draw safemode 12V Battery (mA): | - |
| Day savings option: | - |
| Fencecable included: | ✓ |
| Warranty (years): | 3 |
| IPX classification: | IPX4 |
| Recommended number of earth stakes: | 1x1m |
| Suitable for solar panel (minimal advised): | - |
| Suitable powersupply (Part No.): | - |
| Auto power conservation to prevent damage to battery: | @12V |
| Device indicator light On/Off: | ✓ |
| Battery LED (indicator): | ✓ |
| Battery safemode: | - |
| Battery performance - normal modus (days/VAh): | ^90 days / 9V210Ah |
| Grid area (Hec/Acre): | 4/10 |
| Multi (3) Wire Fence distance - Recommended (km): | 3 |
| Multi (2) Wire Fence distance - Ideal conditions (km): | 10 |
| Multi (2) Wire Fence distance - Light conditions (km) : | 6 |
| Single Wire Fence distance - Ideal conditions (km): | 24 |
| Output Energy (J): | 0,48 |
| Stored Energy (J): | 0,8 |
| Voltage with 100 Ohm (V): | 560 / 480 |
| Output with 500 Ohm (V): | 2200 / 2000 |
| Maximum output Voltage: | 9400 |
| Half power mode: | - |
| Night savings option: | - |
| Recommended Battery (minimal advised): | 9V-120Ah |
| Weight (Kg): | 1,6 |
