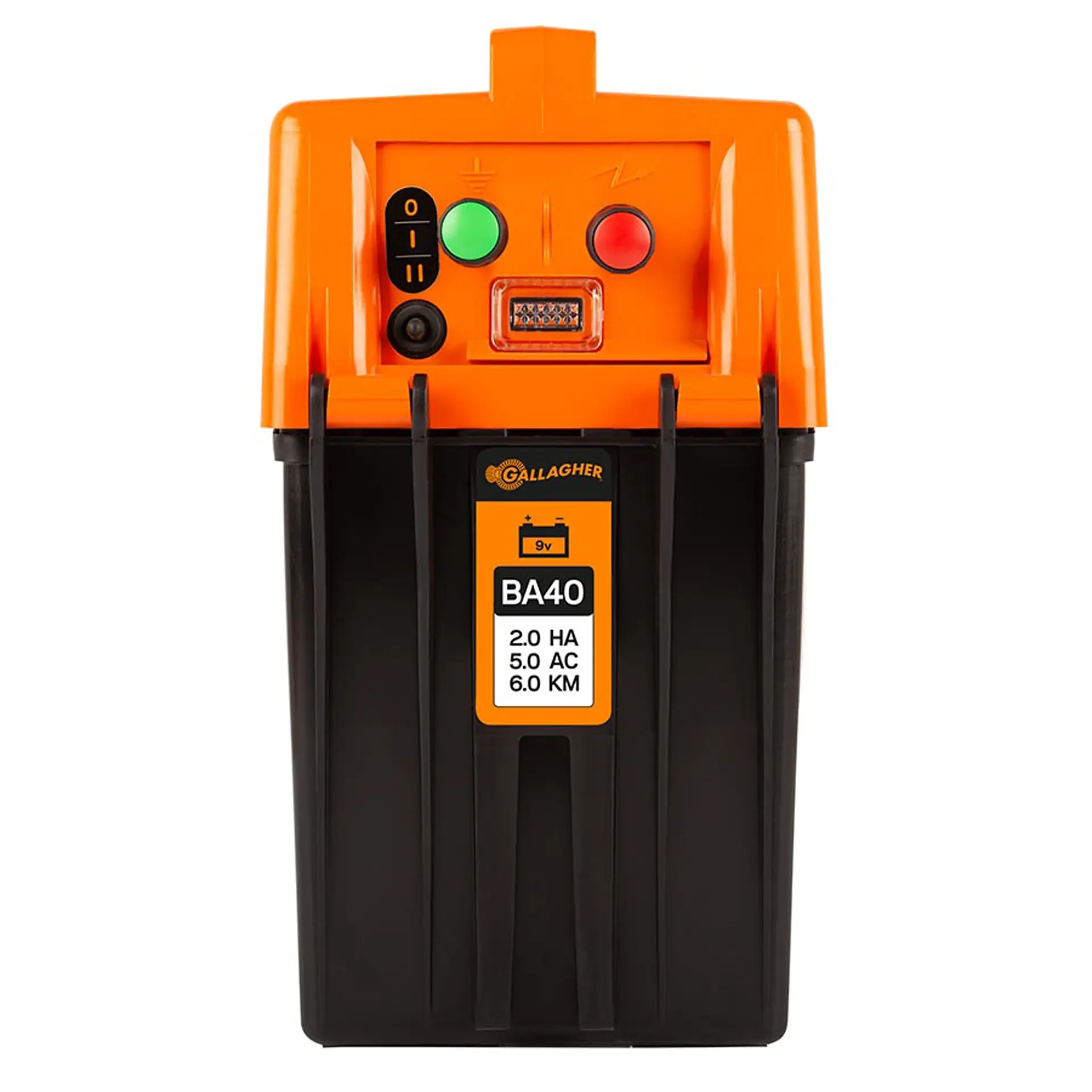

BA40 9V battery energiser (0.4J - 9V/12V)
- Up to 6 km (with multi-wire fences)
- Suitable for livestock, horses, pets and garden
- Compact and portable model
- Farmproof: splash-proof and extremely strong
- LED indicators - Displays battery and device status.
Description
The Gallagher BA40 brings powerful performance to your mobile fence and is designed for up to 6 km of electric fencing or approximately 2 hectares under ideal conditions. Under normal conditions, it is suitable for fences up to 1.5 km. With a charging energy of 0.4 joules (0.27 J pulse) and a maximum output voltage of 9600 volts, it keeps horses, cattle, sheep, goats and hobby animals safely in their paddock.
Two modes for power or battery saving
The BA40 features two modes: a mode for maximum power (mode 1) and a smart saving mode (mode 2), where one full pulse is followed by three half-strength pulses. This saving mode can be used for animals that are trained and respect the fence. A 9V battery of 175 Ah then lasts up to 160 days and the average consumption drops to about 43 mA.
Clear LED indicator and quick installation
A green LED flashes with each pulse so you can immediately see that there is power on the fence. When the LED flashes red, you know it’s time to replace the 9V battery (this does not work for 12V batteries). One 1.0 m earth stake is sufficient for installation. The included cable set for connection to the fence snaps in seconds, then you immediately have voltage on the wire.
Weatherproof and easy to move
For field use, the BA40 features an IPX4 splash-proof housing, built-in lightning protection and a robust carrying handle. Weighing only 1.6 kg, you can easily move the device from field to field—ideal for paddocks where mains power is not available. The choice between a disposable 9V battery or rechargeable 12V battery gives you complete freedom. If you want to use the BA40 with a 12V battery, you must purchase a separate cable set (005499).
| Product number: | 356327 |
|---|---|
| 9V/12V connection: | ✓/✓ |
| Avg. current draw Battery (mA): | 43 |
| Avg. current draw safemode 12V Battery (mA): | - |
| Battery leads included: | - |
| Day savings option: | - |
| Fencecable included: | ✓ |
| Warranty (years): | 3 |
| IPX classification: | IPX4 |
| Recommended number of earth stakes: | 1x1m |
| Suitable for solar panel (minimal advised): | - |
| Suitable powersupply (Part No.): | - |
| Normal - slow pulse mode: | ✓ |
| Auto power conservation to prevent damage to battery: | @12V |
| Device indicator light On/Off: | ✓ |
| Battery LED (indicator): | ✓ |
| Battery safemode: | - |
| Battery performance - normal modus (days/VAh): | ^160 days / 9V175Ah |
| Grid area (Hec/Acre): | 2/5 |
| Multi (3) Wire Fence distance - Recommended (km): | 1,5 |
| Multi (2) Wire Fence distance - Ideal conditions (km): | 6 |
| Multi (2) Wire Fence distance - Light conditions (km) : | 4 |
| Single Wire Fence distance - Ideal conditions (km): | 18 |
| Output Energy (J): | 0,26 |
| Stored Energy (J): | 0,4 |
| Voltage with 100 Ohm (V): | 450 / 340 |
| Output with 500 Ohm (V): | 1800 / 1400 |
| Maximum output Voltage: | 9400 |
| Half power mode: | - |
| Night savings option: | - |
| Recommended Battery (minimal advised): | 9V-120Ah |
| Weight (Kg): | 1,6 |
€224.95
BA40 9V battery energiser (0.4J - 9V/12V)
- Up to 6 km (with multi-wire fences)
- Suitable for livestock, horses, pets and garden
- Compact and portable model
- Farmproof: splash-proof and extremely strong
- LED indicators - Displays battery and device status.
Description
The Gallagher BA40 brings powerful performance to your mobile fence and is designed for up to 6 km of electric fencing or approximately 2 hectares under ideal conditions. Under normal conditions, it is suitable for fences up to 1.5 km. With a charging energy of 0.4 joules (0.27 J pulse) and a maximum output voltage of 9600 volts, it keeps horses, cattle, sheep, goats and hobby animals safely in their paddock.
Two modes for power or battery saving
The BA40 features two modes: a mode for maximum power (mode 1) and a smart saving mode (mode 2), where one full pulse is followed by three half-strength pulses. This saving mode can be used for animals that are trained and respect the fence. A 9V battery of 175 Ah then lasts up to 160 days and the average consumption drops to about 43 mA.
Clear LED indicator and quick installation
A green LED flashes with each pulse so you can immediately see that there is power on the fence. When the LED flashes red, you know it’s time to replace the 9V battery (this does not work for 12V batteries). One 1.0 m earth stake is sufficient for installation. The included cable set for connection to the fence snaps in seconds, then you immediately have voltage on the wire.
Weatherproof and easy to move
For field use, the BA40 features an IPX4 splash-proof housing, built-in lightning protection and a robust carrying handle. Weighing only 1.6 kg, you can easily move the device from field to field—ideal for paddocks where mains power is not available. The choice between a disposable 9V battery or rechargeable 12V battery gives you complete freedom. If you want to use the BA40 with a 12V battery, you must purchase a separate cable set (005499).
| Product number: | 356327 |
|---|---|
| 9V/12V connection: | ✓/✓ |
| Avg. current draw Battery (mA): | 43 |
| Avg. current draw safemode 12V Battery (mA): | - |
| Battery leads included: | - |
| Day savings option: | - |
| Fencecable included: | ✓ |
| Warranty (years): | 3 |
| IPX classification: | IPX4 |
| Recommended number of earth stakes: | 1x1m |
| Suitable for solar panel (minimal advised): | - |
| Suitable powersupply (Part No.): | - |
| Normal - slow pulse mode: | ✓ |
| Auto power conservation to prevent damage to battery: | @12V |
| Device indicator light On/Off: | ✓ |
| Battery LED (indicator): | ✓ |
| Battery safemode: | - |
| Battery performance - normal modus (days/VAh): | ^160 days / 9V175Ah |
| Grid area (Hec/Acre): | 2/5 |
| Multi (3) Wire Fence distance - Recommended (km): | 1,5 |
| Multi (2) Wire Fence distance - Ideal conditions (km): | 6 |
| Multi (2) Wire Fence distance - Light conditions (km) : | 4 |
| Single Wire Fence distance - Ideal conditions (km): | 18 |
| Output Energy (J): | 0,26 |
| Stored Energy (J): | 0,4 |
| Voltage with 100 Ohm (V): | 450 / 340 |
| Output with 500 Ohm (V): | 1800 / 1400 |
| Maximum output Voltage: | 9400 |
| Half power mode: | - |
| Night savings option: | - |
| Recommended Battery (minimal advised): | 9V-120Ah |
| Weight (Kg): | 1,6 |
Complete with:
- Suitable for all 9V fence energisers
- Higher power output and longer life than saline batteries
- A mercury-free, environmentally-friendly alkaline battery.
Content: 2 piece (€44.98 / 1 piece)
- Specially designed standard for B20/B35 and BA series
- Excellent to use for earthing
- Galvanised
- Checks voltage with 5 neon lights
- Operates without batteries
- Durable design with earth stake and 1.65 m wire
- Connects a B20, B35, B60 and all Gallagher solar energisers to the fence and earth.
Also interesting:
- Measures voltage (0.2-15 kV) and current (1-99 A)
- Displays current direction for quick fault location
- Self-earthing via thumb, no earth stake needed for wire measurements
- Use as part of an electric gateway
- Compression spring provides extra strength and will not overstretch under tension
- Large shield to protect from shocks
Content: 10 piece (€1.86 / 1 piece)
- Ideal for standard leadouts and undergate cabling
- Soft coating with meter markings for ease of stripping
- Suitable between earth pegs in earth system
Content: 25 meter (€1.92 / 1 meter)
- With metal core
- High-quality black plastic
- For wooden posts
Content: 100 piece (€0.20 / 1 piece)
