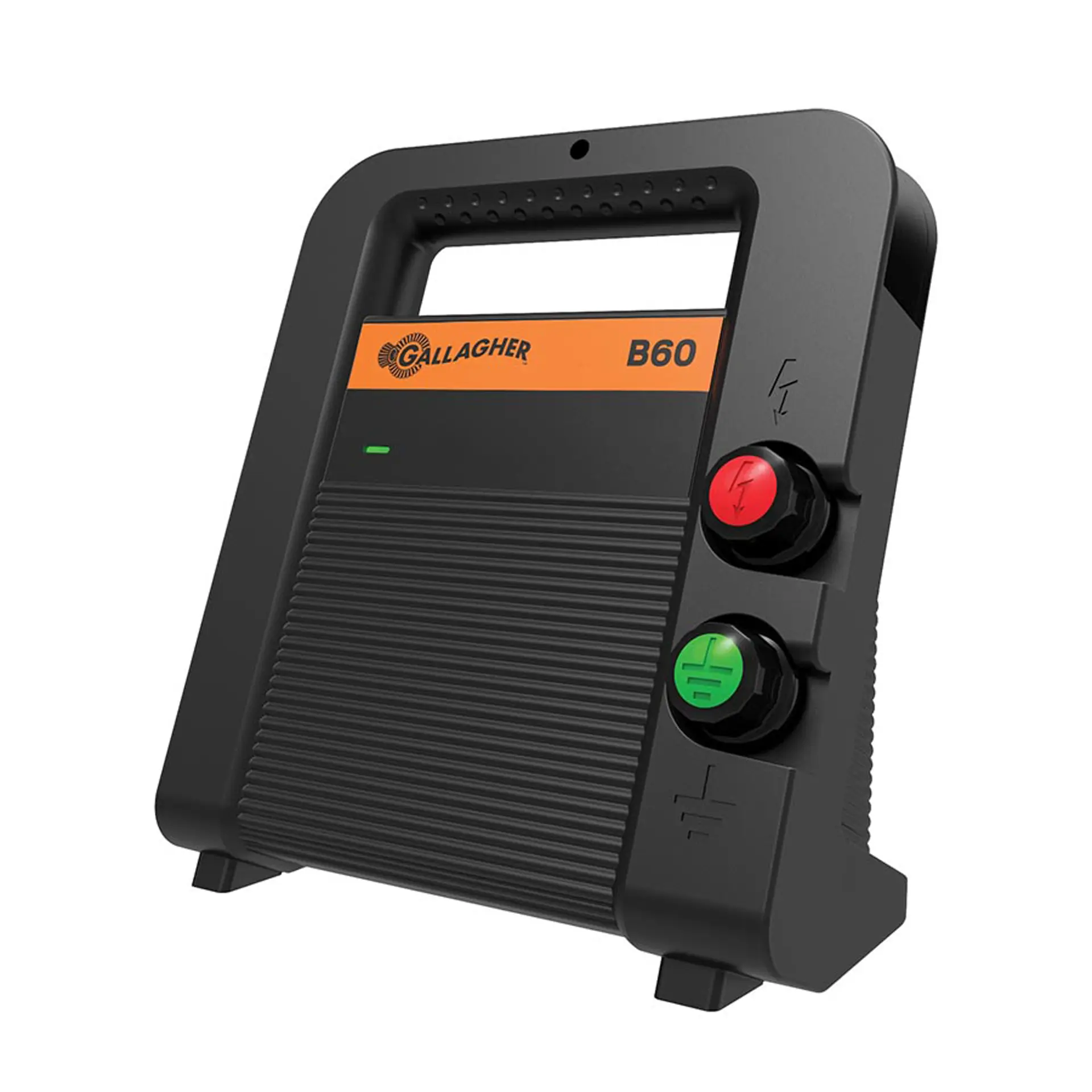

B60 Battery energiser (0.6J - 12V)
- Up to 8 km (with multi-wire fences)
- Suitable for livestock, pig and horses
- Compact and portable model
- Farmproof: splash-proof and extremely strong
- Smart control; built-in battery and pulse indicator
Description
The B60 is the entry model for the 12V battery energizers. The battery energiser is suitable for fencing of up to 6 km, and it has a built-in lightning conductor. The energizer is easy to move and easy to connect with the integrated connection cable. The B60 is extremely suitable for portable fencing and for fencing in places without mains power.
Specifications:
- Maximum output voltage (V): 8000
- Charging energy (J): 0.6
- Maximum impulse energy (J): 0.4
- Number of earthing rods required: 1 x 1 m
- No vegetation (km) (recommended): 6
- Light vegetation (km) (recommended): 2
- Dense vegetation (km) (recommended): 1
- Fence surface (ha) (recommended): 3
| Product number: | 388304 |
|---|---|
| 9V/12V connection: | -/- |
| Avg. current draw Battery (mA): | 49 |
| Avg. current draw safemode 12V Battery (mA): | - |
| Battery leads included: | ✓ |
| Day savings option: | - |
| Fencecable included: | ✓ |
| Warranty (years): | 3 |
| IPX classification: | IPX4 |
| Recommended number of earth stakes: | 1x1m |
| Suitable for solar panel (minimal advised): | GE recommends MB/MBS series energiser |
| Suitable powersupply (Part No.): | - |
| Powersupply included: | - |
| Normal - slow pulse mode: | - |
| Auto power conservation to prevent damage to battery: | ✓ |
| Device indicator light On/Off: | - |
| Battery LED (indicator): | ✓ |
| Battery safemode: | - |
| Battery performance - normal modus (days/VAh): | ^35 days / 12V85Ah |
| Grid area (Hec/Acre): | 3/7 |
| Multi (3) Wire Fence distance - Recommended (km): | 1 |
| Multi (2) Wire Fence distance - Ideal conditions (km): | 8 |
| Multi (2) Wire Fence distance - Light conditions (km) : | 2 |
| Single Wire Fence distance - Ideal conditions (km): | 25 |
| Output Energy (J): | 0,4 |
| Stored Energy (J): | 0,6 |
| Voltage with 100 Ohm (V): | 1100 |
| Output with 500 Ohm (V): | 3500 |
| Maximum output Voltage: | 8500 |
| Half power mode: | - |
| Night savings option: | - |
| Weight (Kg): | 1,4 |
€139.00
B60 Battery energiser (0.6J - 12V)
- Up to 8 km (with multi-wire fences)
- Suitable for livestock, pig and horses
- Compact and portable model
- Farmproof: splash-proof and extremely strong
- Smart control; built-in battery and pulse indicator
Description
The B60 is the entry model for the 12V battery energizers. The battery energiser is suitable for fencing of up to 6 km, and it has a built-in lightning conductor. The energizer is easy to move and easy to connect with the integrated connection cable. The B60 is extremely suitable for portable fencing and for fencing in places without mains power.
Specifications:
- Maximum output voltage (V): 8000
- Charging energy (J): 0.6
- Maximum impulse energy (J): 0.4
- Number of earthing rods required: 1 x 1 m
- No vegetation (km) (recommended): 6
- Light vegetation (km) (recommended): 2
- Dense vegetation (km) (recommended): 1
- Fence surface (ha) (recommended): 3
| Product number: | 388304 |
|---|---|
| 9V/12V connection: | -/- |
| Avg. current draw Battery (mA): | 49 |
| Avg. current draw safemode 12V Battery (mA): | - |
| Battery leads included: | ✓ |
| Day savings option: | - |
| Fencecable included: | ✓ |
| Warranty (years): | 3 |
| IPX classification: | IPX4 |
| Recommended number of earth stakes: | 1x1m |
| Suitable for solar panel (minimal advised): | GE recommends MB/MBS series energiser |
| Suitable powersupply (Part No.): | - |
| Powersupply included: | - |
| Normal - slow pulse mode: | - |
| Auto power conservation to prevent damage to battery: | ✓ |
| Device indicator light On/Off: | - |
| Battery LED (indicator): | ✓ |
| Battery safemode: | - |
| Battery performance - normal modus (days/VAh): | ^35 days / 12V85Ah |
| Grid area (Hec/Acre): | 3/7 |
| Multi (3) Wire Fence distance - Recommended (km): | 1 |
| Multi (2) Wire Fence distance - Ideal conditions (km): | 8 |
| Multi (2) Wire Fence distance - Light conditions (km) : | 2 |
| Single Wire Fence distance - Ideal conditions (km): | 25 |
| Output Energy (J): | 0,4 |
| Stored Energy (J): | 0,6 |
| Voltage with 100 Ohm (V): | 1100 |
| Output with 500 Ohm (V): | 3500 |
| Maximum output Voltage: | 8500 |
| Half power mode: | - |
| Night savings option: | - |
| Weight (Kg): | 1,4 |
Complete with:
- Up to 4 km (for multiple-wire fences)
- Suitable for livestock, horses and game
- Works for 20 days without UV light
- No maintenance battery 12V/65Ah
- Longer lifespan than average 12V battery
- Suitable for all 12V energisers
- Unrivalled quality battery 12V/60Ah
- Extremely low self-discharge, thus last longer than traditional battery
- Deliverd filled and charged
- Double earth stakes of 2x 0.5 m
- Conduction equal to 1 m earth stake
- Easy installation and removal
- Easy to install the S10 or S16 to a Gallagher Ring top post
- Required by law
- Highly visible sign
- Tip: Every 50m 1 sign.
- Galvanized housing that protects the battery and the energiser from vandalism or theft
- Locked and connected to energisers
- Can be placed on a 100 x 100 mm post
- Control and monitor your fence via SMS
- Voltage check
- Alarm on your phone
- 6V and 12 Volt Charger
- Maintenance mode (trickle charging)
- Automatic battery voltage detection
- Connects a B20, B35, B60 and all Gallagher solar energisers to the fence and earth.
