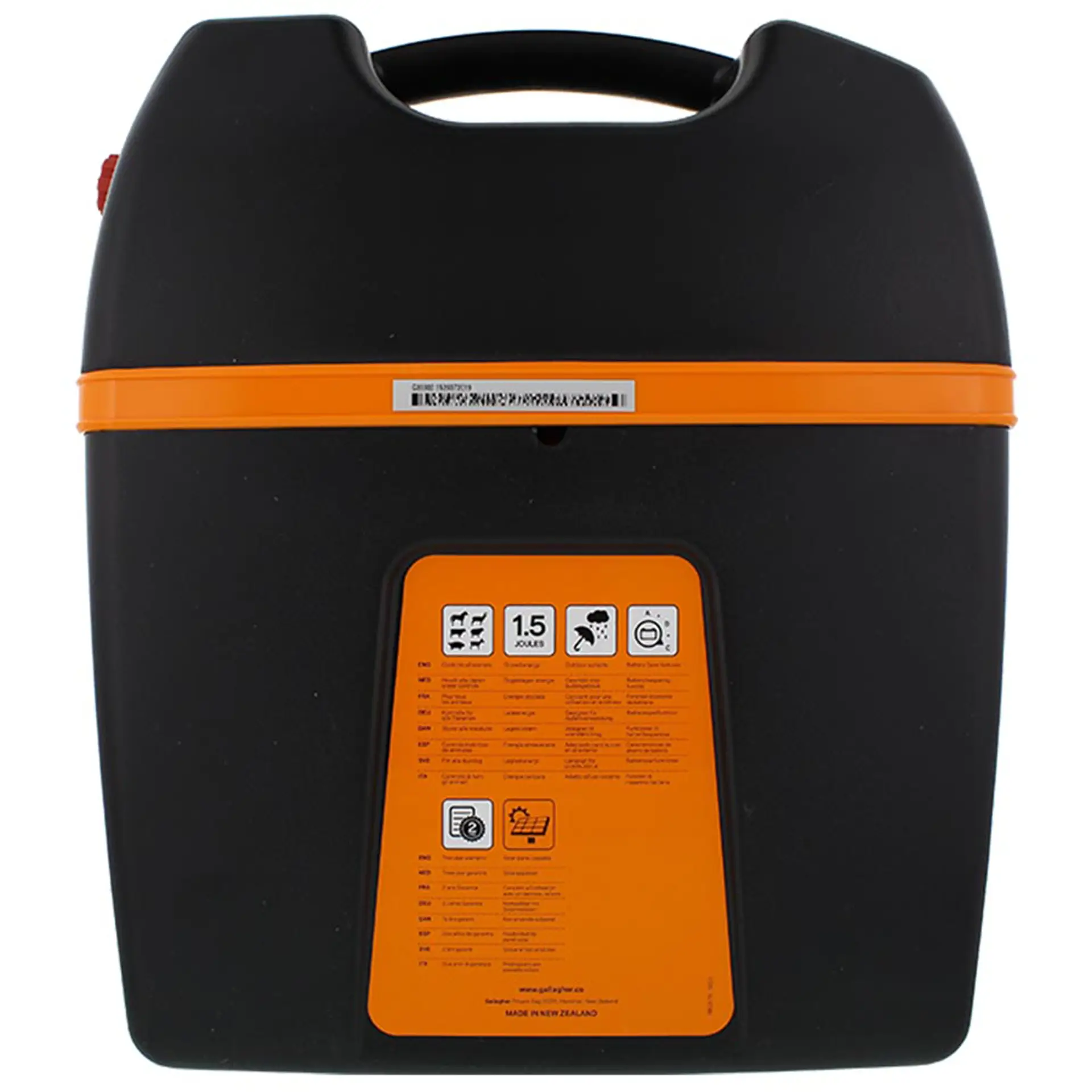

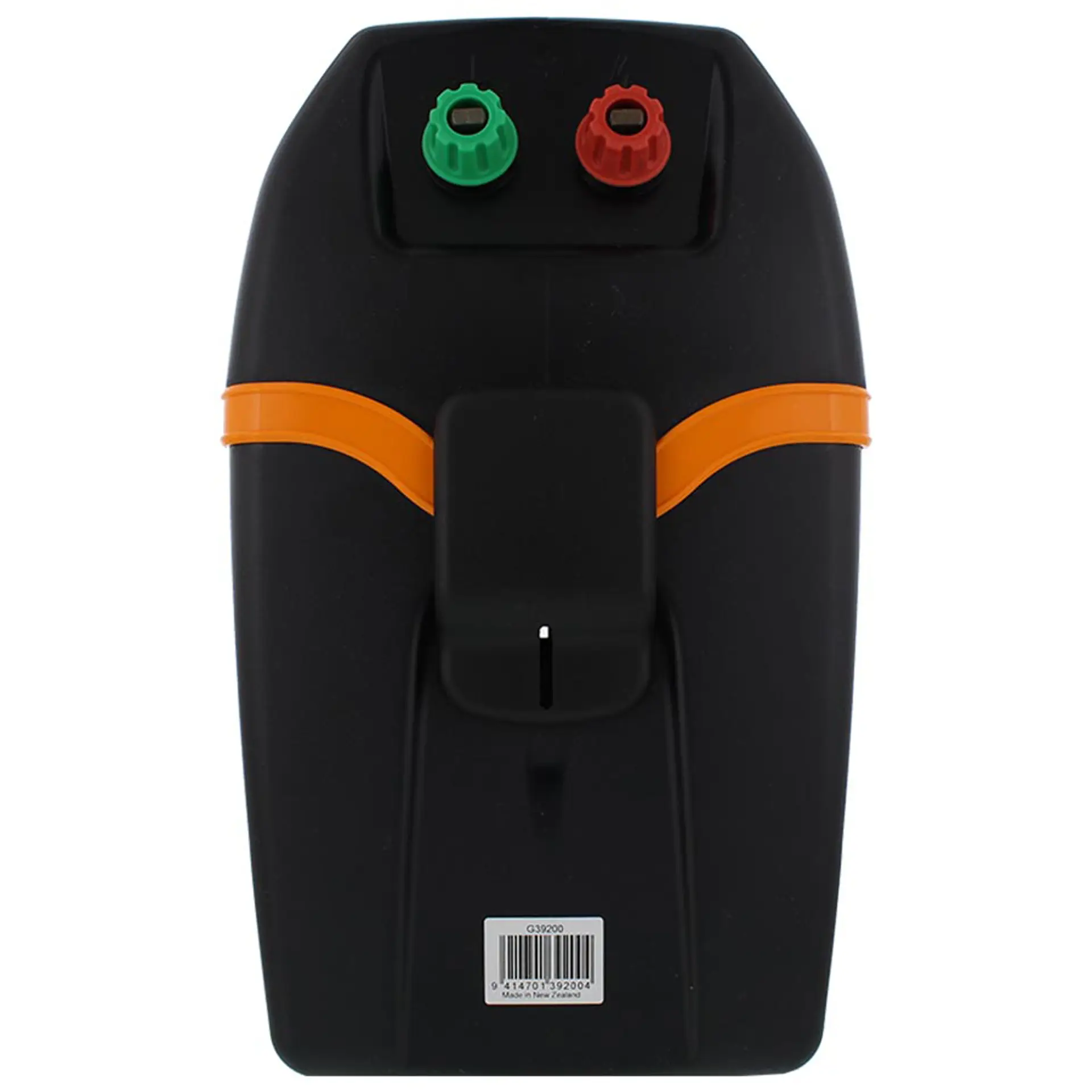

B100 Battery energiser (0.8J - 9V/12V)
- Up to 10 km (with multi-wire fences)
- Suitable for livestock, horse and game
- Rugged and portable - Super-strong, water- and shock-resistant casing with carrying handle.
- Smart indication - Check lights show battery and fence status at a glance.
- Solar power option - Expandable with solar panels for a sustainable power supply.
Description
The B100 is a battery energiser, suitable for fences up to 10 km.
The energiser is designed for outdoor use with a super tough, water and impact resistant case with a tamper proof design and carry handle for easy transportation. Quick glance indicator lights show battery and fence performance.
Versatile animal control is assured as the energiser pulse modes can vary to suit different animals. Four easy to use battery save options also provides flexible fence management and can extend battery life up to 12 months.
The energiser can also be converted to solar operation with the addition of a solar panel kit.
Specifications:
- Maximum output voltage (V): 10000
- Charging energy (J): 0.8
- Maximum impulse energy (J): 0.55
- Number of earthing rods required: 2 x 1 m
- No vegetation (km) (recommended): 10
- Light vegetation (km) (recommended): 5
- Dense vegetation (km) (recommended): 3
- Fence surface (ha) (recommended): 4
| Product number: | 392004 |
|---|---|
| 9V/12V connection: | -/- |
| Avg. current draw Battery (mA): | 60 |
| Avg. current draw safemode 12V Battery (mA): | 35 |
| Battery leads included: | ✓ |
| Day savings option: | ✓ |
| Fencecable included: | ✓ |
| Warranty (years): | 3 |
| IPX classification: | IPX4 |
| Recommended number of earth stakes: | 2x1m |
| Suitable for solar panel (minimal advised): | *10W |
| Suitable powersupply (Part No.): | 053865 |
| Powersupply included: | - |
| Normal - slow pulse mode: | ✓ |
| Device indicator light On/Off: | - |
| Battery LED (indicator): | ✓ |
| Battery safemode: | ✓ |
| Battery performance - normal modus (days/VAh): | ^35 days / 12V85Ah |
| Grid area (Hec/Acre): | 4/10 |
| Multi (3) Wire Fence distance - Recommended (km): | 3 |
| Multi (2) Wire Fence distance - Ideal conditions (km): | 10 |
| Multi (2) Wire Fence distance - Light conditions (km) : | 5 |
| Single Wire Fence distance - Ideal conditions (km): | 30 |
| Output Energy (J): | 0,55 |
| Stored Energy (J): | 0,8 |
| Voltage with 100 Ohm (V): | 1100 |
| Output with 500 Ohm (V): | 3500 |
| Maximum output Voltage: | 10000 |
| Half power mode: | ✓ |
| Night savings option: | ✓ |
| Weight (Kg): | 3,58 |
€409.00
B100 Battery energiser (0.8J - 9V/12V)
- Up to 10 km (with multi-wire fences)
- Suitable for livestock, horse and game
- Rugged and portable - Super-strong, water- and shock-resistant casing with carrying handle.
- Smart indication - Check lights show battery and fence status at a glance.
- Solar power option - Expandable with solar panels for a sustainable power supply.
Description
The B100 is a battery energiser, suitable for fences up to 10 km.
The energiser is designed for outdoor use with a super tough, water and impact resistant case with a tamper proof design and carry handle for easy transportation. Quick glance indicator lights show battery and fence performance.
Versatile animal control is assured as the energiser pulse modes can vary to suit different animals. Four easy to use battery save options also provides flexible fence management and can extend battery life up to 12 months.
The energiser can also be converted to solar operation with the addition of a solar panel kit.
Specifications:
- Maximum output voltage (V): 10000
- Charging energy (J): 0.8
- Maximum impulse energy (J): 0.55
- Number of earthing rods required: 2 x 1 m
- No vegetation (km) (recommended): 10
- Light vegetation (km) (recommended): 5
- Dense vegetation (km) (recommended): 3
- Fence surface (ha) (recommended): 4
| Product number: | 392004 |
|---|---|
| 9V/12V connection: | -/- |
| Avg. current draw Battery (mA): | 60 |
| Avg. current draw safemode 12V Battery (mA): | 35 |
| Battery leads included: | ✓ |
| Day savings option: | ✓ |
| Fencecable included: | ✓ |
| Warranty (years): | 3 |
| IPX classification: | IPX4 |
| Recommended number of earth stakes: | 2x1m |
| Suitable for solar panel (minimal advised): | *10W |
| Suitable powersupply (Part No.): | 053865 |
| Powersupply included: | - |
| Normal - slow pulse mode: | ✓ |
| Device indicator light On/Off: | - |
| Battery LED (indicator): | ✓ |
| Battery safemode: | ✓ |
| Battery performance - normal modus (days/VAh): | ^35 days / 12V85Ah |
| Grid area (Hec/Acre): | 4/10 |
| Multi (3) Wire Fence distance - Recommended (km): | 3 |
| Multi (2) Wire Fence distance - Ideal conditions (km): | 10 |
| Multi (2) Wire Fence distance - Light conditions (km) : | 5 |
| Single Wire Fence distance - Ideal conditions (km): | 30 |
| Output Energy (J): | 0,55 |
| Stored Energy (J): | 0,8 |
| Voltage with 100 Ohm (V): | 1100 |
| Output with 500 Ohm (V): | 3500 |
| Maximum output Voltage: | 10000 |
| Half power mode: | ✓ |
| Night savings option: | ✓ |
| Weight (Kg): | 3,58 |
