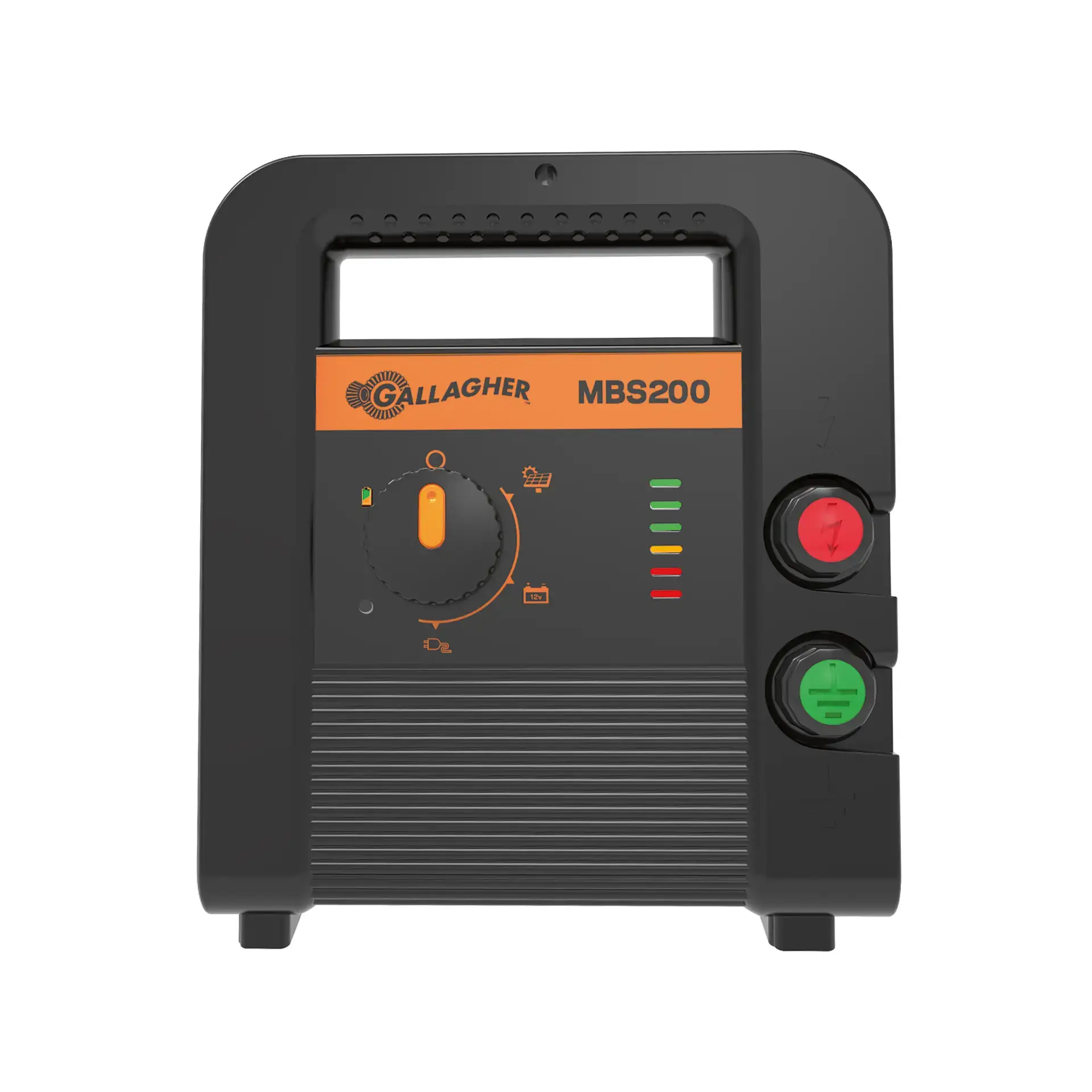

MBS200 Multipower energiser (2.0J - 230V/12V/Solar)
- Up to 20 km (with multi-wire fences)
- Suitable for livestock, horses, game, pets and garden
- Compact and portable model
- Farmproof: splash-proof and extremely strong
- Perfect to combine with separately available solar kit
Description
The Gallagher MBS200 is a robust 3-in-1 multi power energiser. This versatile device can operate on mains power (230V), a separate 12V battery, or a 12V battery with a solar panel. You can easily choose the power source you want to use with the rotary knob, ensuring you always have a suitable power supply. This allows you to use the MBS200 anywhere – from permanent fences at the farm to mobile pastures deep in the field – without compromising safety or reliability. With a charging energy of 2 J (pulse 1.5 J) and a maximum output voltage of 9000 volts, the device is suitable for fences up to 20 kilometres (8 ha). Under normal conditions, it is suitable for fences up to 5 km. It keeps horses, cattle, sheep, goats, and hobby animals safely in their pasture.

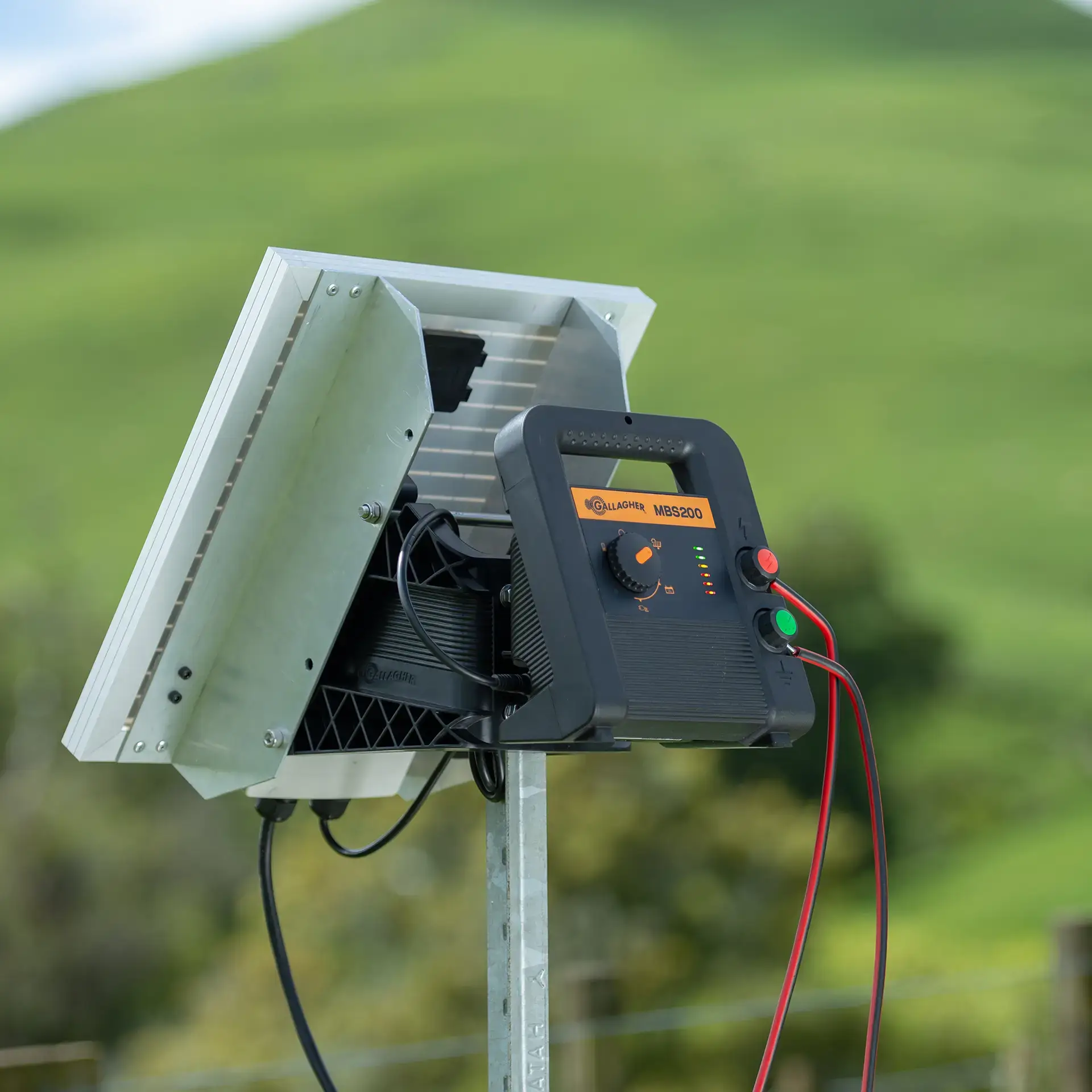

Smart battery management for long-term solar energy operation
The device has LED lights that show the status of the fence. If these turn red or you notice a change, you know it's time to investigate. When the system is set to solar panel mode, the built-in Smart Battery Management System activates. This monitors the battery voltage, checks if the solar panel provides enough power, and automatically reduces the pulse frequency and voltage when it consumes more than it charges for an extended period and the battery becomes too low. This ensures the fence stays energised for as long as possible, while the battery has the opportunity to fully recharge faster with adequate daylight.

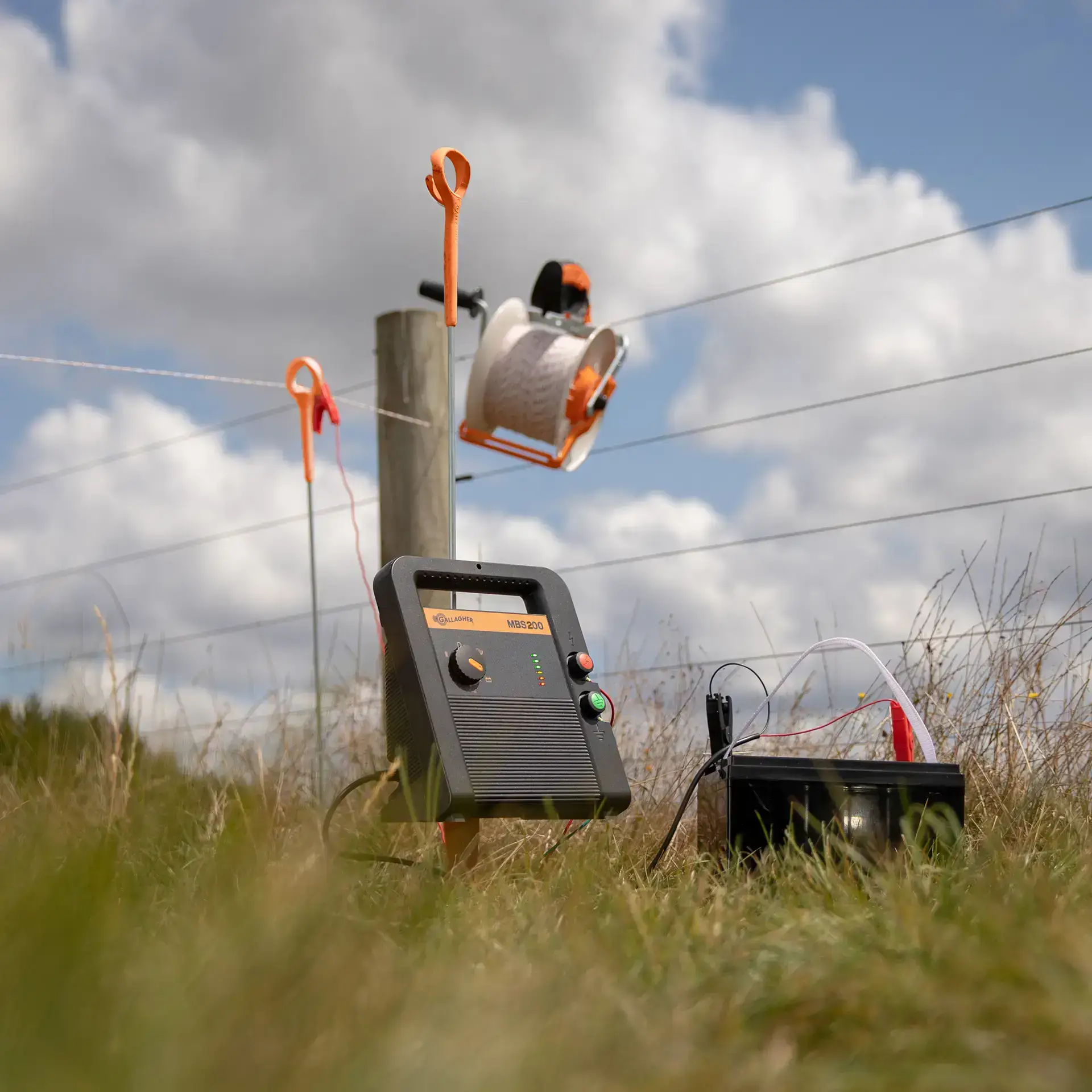

Built for outdoor use, anywhere
Compared to a purely mains-powered device, the MBS200 allows you to operate in various locations. The MBS200 is built to perform in the field and last a long time. The compact design is easy to carry and install, but also splash-proof and resistant to the harshest weather conditions. The built-in lightning protection ensures the device is as well-protected as possible against overvoltage during thunderstorms. Additionally, the device is virtually maintenance-free – once installed, it requires little attention.
Ready to use thanks to supplied connections
Both the connection cable for a 12V battery, the adapter for mains power use (230V), and a cable to connect the MBS200 to the fence (in the meadow) are included.
| Product number: | 389318 |
|---|---|
| Avg./Max current draw 12V Battery (mA) : | 176/310 |
| Battery check mode: | ✓ |
| Battery only mode: | ✓ |
| Fence and Earth connection lead included: | 004938 |
| Mains Power mode: | ✓ |
| Smart battery management: | ✓ |
| Solar and battery mode: | ✓ |
| Suitable for Electrified Vandal Proof Box (083046): | ✓ |
| Suitable for Gallagher Solarbox (073511): | ✓ |
| Warranty (years): | 3 |
| IPX classification: | IPX4 |
| Recommended number of earth stakes: | 4x1m |
| Suitable for solar panel (minimal advised): | "*20W solar kit part No. 495217" |
| 12V Battery Leadset MB/MBS Series included: | 582207 |
| Suitable powersupply (Part No.): | 401218 |
| Powersupply included: | ✓ |
| Auto power conservation to prevent damage to battery: | ✓ |
| Built-in lightning protection: | ✓ |
| Device indicator light On/Off: | ✓ |
| Battery LED (indicator): | LED Bar |
| Battery safemode: | ✓ |
| Battery performance - normal modus (days/VAh): | ^12 days / 12V105Ah |
| Avg. power cons. 15V Powersupply (W): | 2,64 |
| Grid area (Hec/Acre): | 8/20 |
| Multi (3) Wire Fence distance - Recommended (km): | 5 |
| Multi (2) Wire Fence distance - Ideal conditions (km): | 20 |
| Multi (2) Wire Fence distance - Light conditions (km) : | 13 |
| Single Wire Fence distance - Ideal conditions (km): | 65 |
| Output Energy (J): | 1,5 |
| Stored Energy (J): | 2 |
| Voltage with 100 Ohm (V): | 2300 |
| Output with 500 Ohm (V): | 5800 |
| Maximum output Voltage: | 9000 |
| Alarm indicator LED fence voltage: | ✓ |
| Weight (Kg): | 1,9 |
£285.00
MBS200 Multipower energiser (2.0J - 230V/12V/Solar)
- Up to 20 km (with multi-wire fences)
- Suitable for livestock, horses, game, pets and garden
- Compact and portable model
- Farmproof: splash-proof and extremely strong
- Perfect to combine with separately available solar kit
- Order before 10:00, shipped today
- Choose between pickup at a dealer or home delivery
Description
The Gallagher MBS200 is a robust 3-in-1 multi power energiser. This versatile device can operate on mains power (230V), a separate 12V battery, or a 12V battery with a solar panel. You can easily choose the power source you want to use with the rotary knob, ensuring you always have a suitable power supply. This allows you to use the MBS200 anywhere – from permanent fences at the farm to mobile pastures deep in the field – without compromising safety or reliability. With a charging energy of 2 J (pulse 1.5 J) and a maximum output voltage of 9000 volts, the device is suitable for fences up to 20 kilometres (8 ha). Under normal conditions, it is suitable for fences up to 5 km. It keeps horses, cattle, sheep, goats, and hobby animals safely in their pasture.
Smart battery management for long-term solar energy operation
The device has LED lights that show the status of the fence. If these turn red or you notice a change, you know it's time to investigate. When the system is set to solar panel mode, the built-in Smart Battery Management System activates. This monitors the battery voltage, checks if the solar panel provides enough power, and automatically reduces the pulse frequency and voltage when it consumes more than it charges for an extended period and the battery becomes too low. This ensures the fence stays energised for as long as possible, while the battery has the opportunity to fully recharge faster with adequate daylight.
Built for outdoor use, anywhere
Compared to a purely mains-powered device, the MBS200 allows you to operate in various locations. The MBS200 is built to perform in the field and last a long time. The compact design is easy to carry and install, but also splash-proof and resistant to the harshest weather conditions. The built-in lightning protection ensures the device is as well-protected as possible against overvoltage during thunderstorms. Additionally, the device is virtually maintenance-free – once installed, it requires little attention.
Ready to use thanks to supplied connections
Both the connection cable for a 12V battery, the adapter for mains power use (230V), and a cable to connect the MBS200 to the fence (in the meadow) are included.
| Product number: | 389318 |
|---|---|
| Avg./Max current draw 12V Battery (mA) : | 176/310 |
| Battery check mode: | ✓ |
| Battery only mode: | ✓ |
| Fence and Earth connection lead included: | 004938 |
| Mains Power mode: | ✓ |
| Smart battery management: | ✓ |
| Solar and battery mode: | ✓ |
| Suitable for Electrified Vandal Proof Box (083046): | ✓ |
| Suitable for Gallagher Solarbox (073511): | ✓ |
| Warranty (years): | 3 |
| IPX classification: | IPX4 |
| Recommended number of earth stakes: | 4x1m |
| Suitable for solar panel (minimal advised): | "*20W solar kit part No. 495217" |
| 12V Battery Leadset MB/MBS Series included: | 582207 |
| Suitable powersupply (Part No.): | 401218 |
| Powersupply included: | ✓ |
| Auto power conservation to prevent damage to battery: | ✓ |
| Built-in lightning protection: | ✓ |
| Device indicator light On/Off: | ✓ |
| Battery LED (indicator): | LED Bar |
| Battery safemode: | ✓ |
| Battery performance - normal modus (days/VAh): | ^12 days / 12V105Ah |
| Avg. power cons. 15V Powersupply (W): | 2,64 |
| Grid area (Hec/Acre): | 8/20 |
| Multi (3) Wire Fence distance - Recommended (km): | 5 |
| Multi (2) Wire Fence distance - Ideal conditions (km): | 20 |
| Multi (2) Wire Fence distance - Light conditions (km) : | 13 |
| Single Wire Fence distance - Ideal conditions (km): | 65 |
| Output Energy (J): | 1,5 |
| Stored Energy (J): | 2 |
| Voltage with 100 Ohm (V): | 2300 |
| Output with 500 Ohm (V): | 5800 |
| Maximum output Voltage: | 9000 |
| Alarm indicator LED fence voltage: | ✓ |
| Weight (Kg): | 1,9 |
