Product information "TurboLine tape 20mm (terra, 200 metres)"

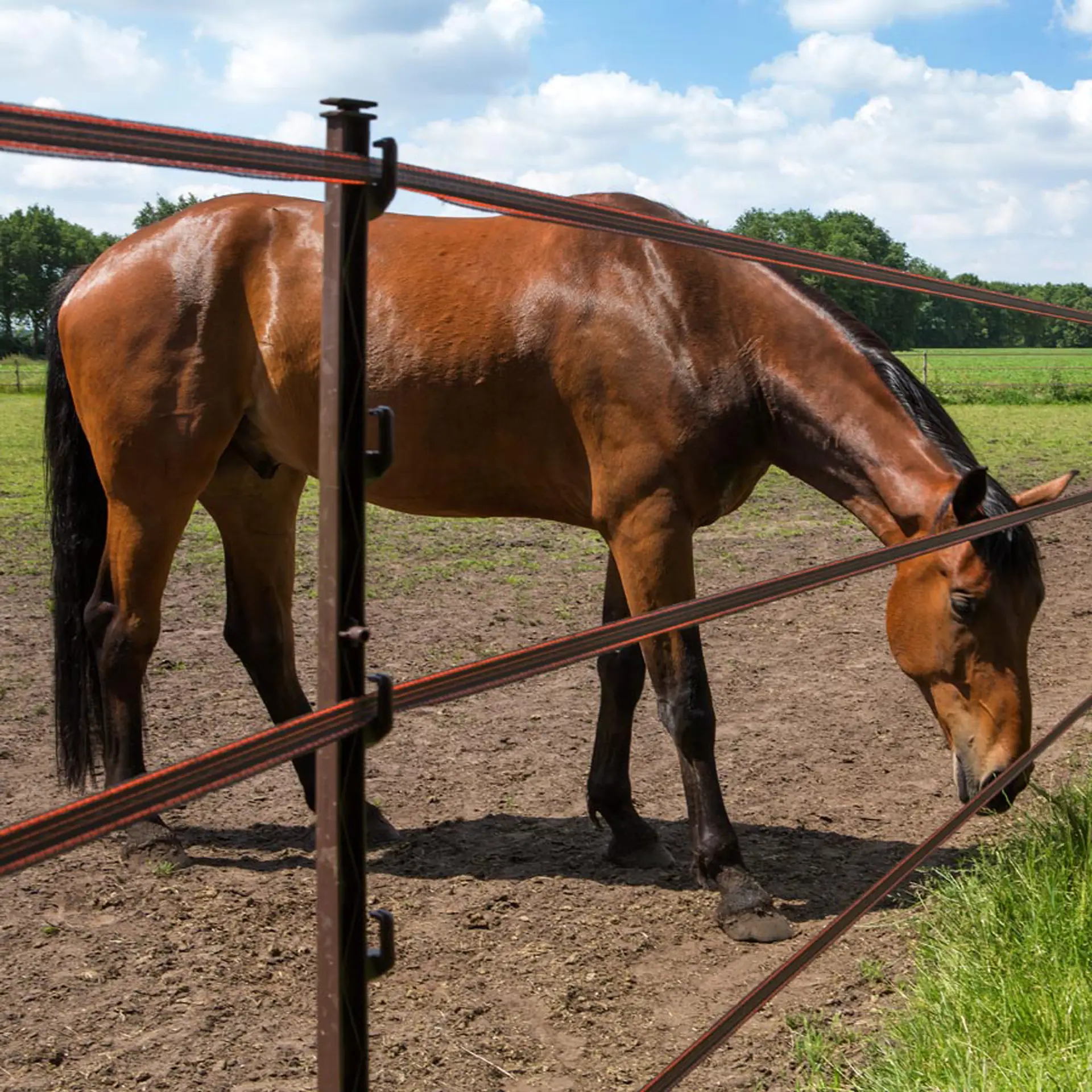

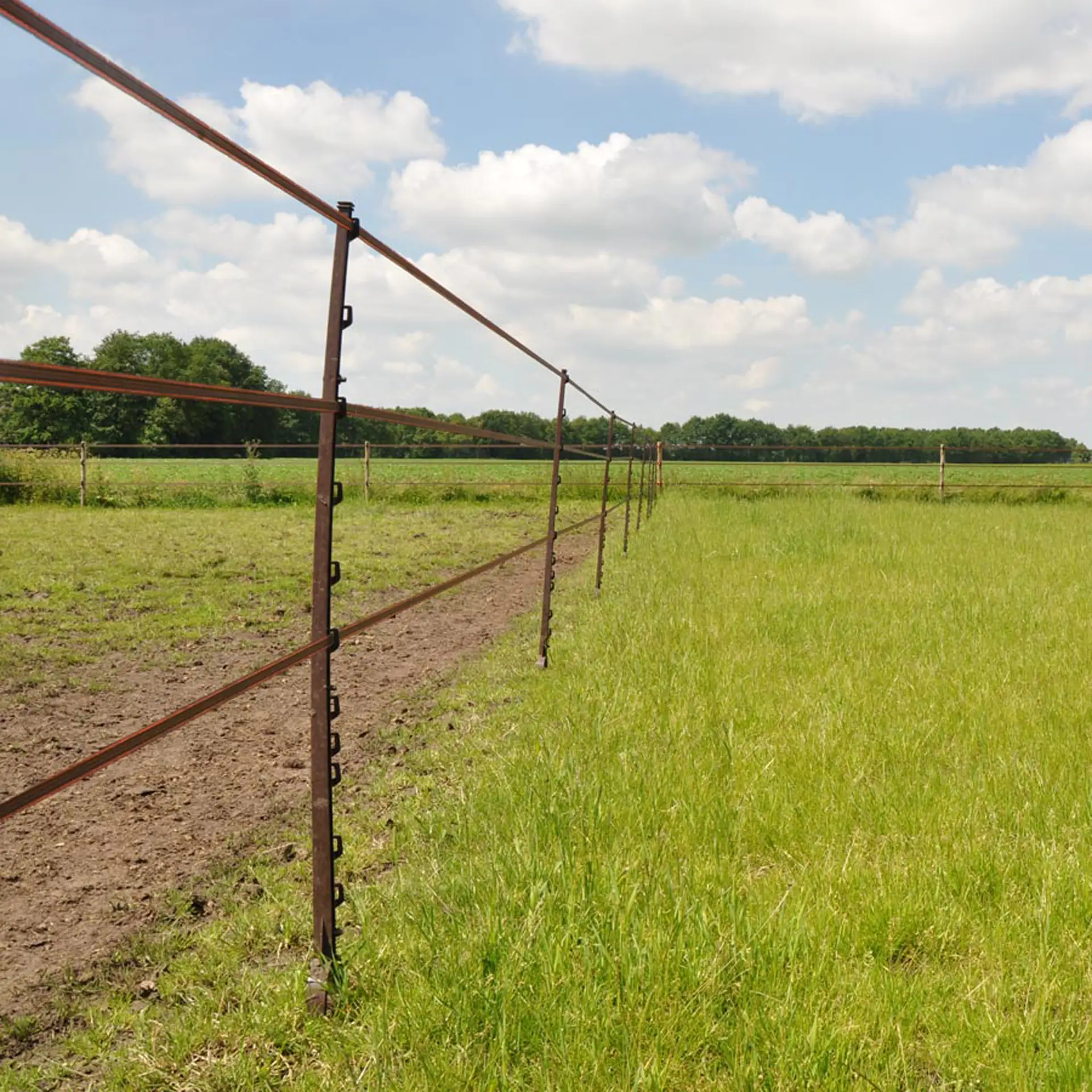

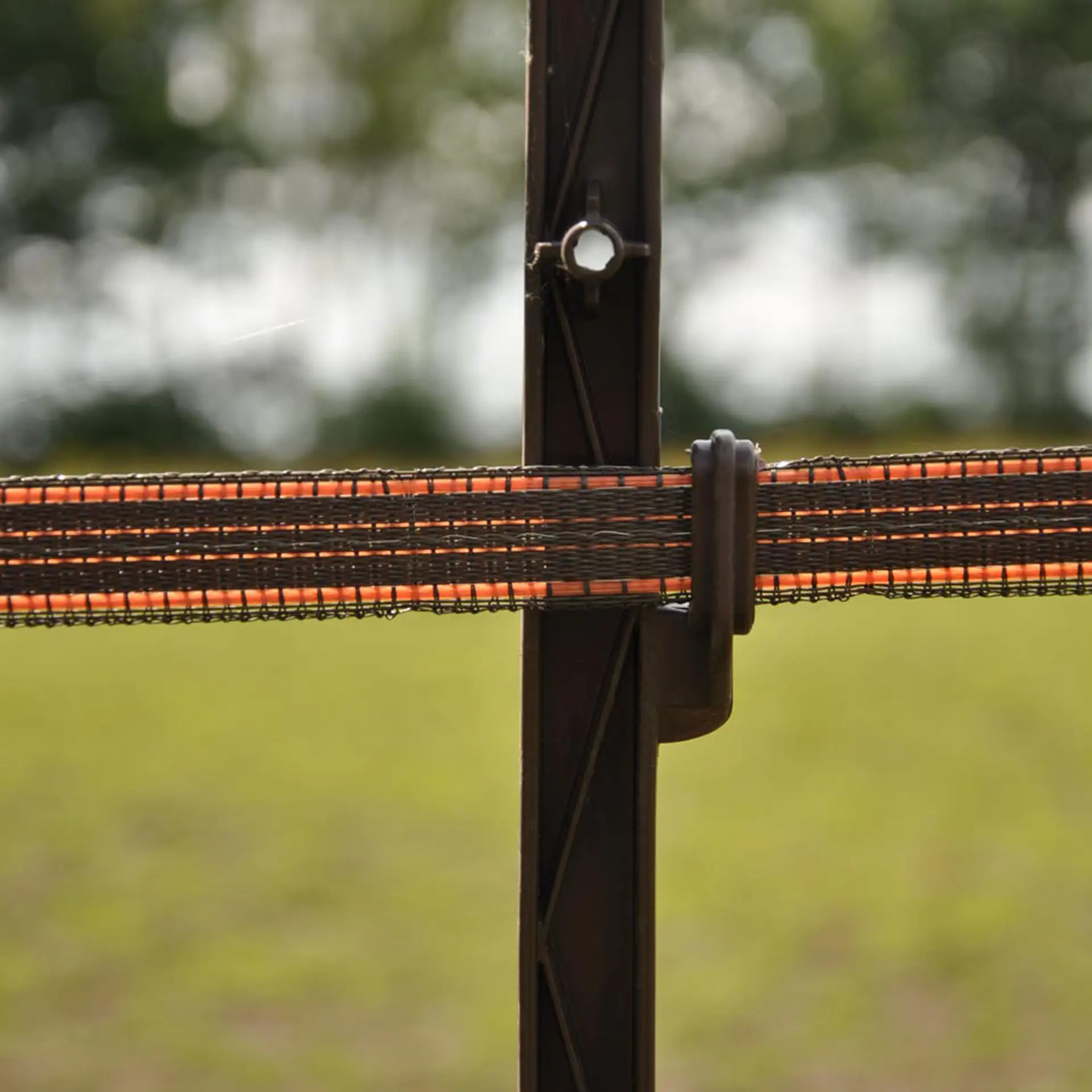

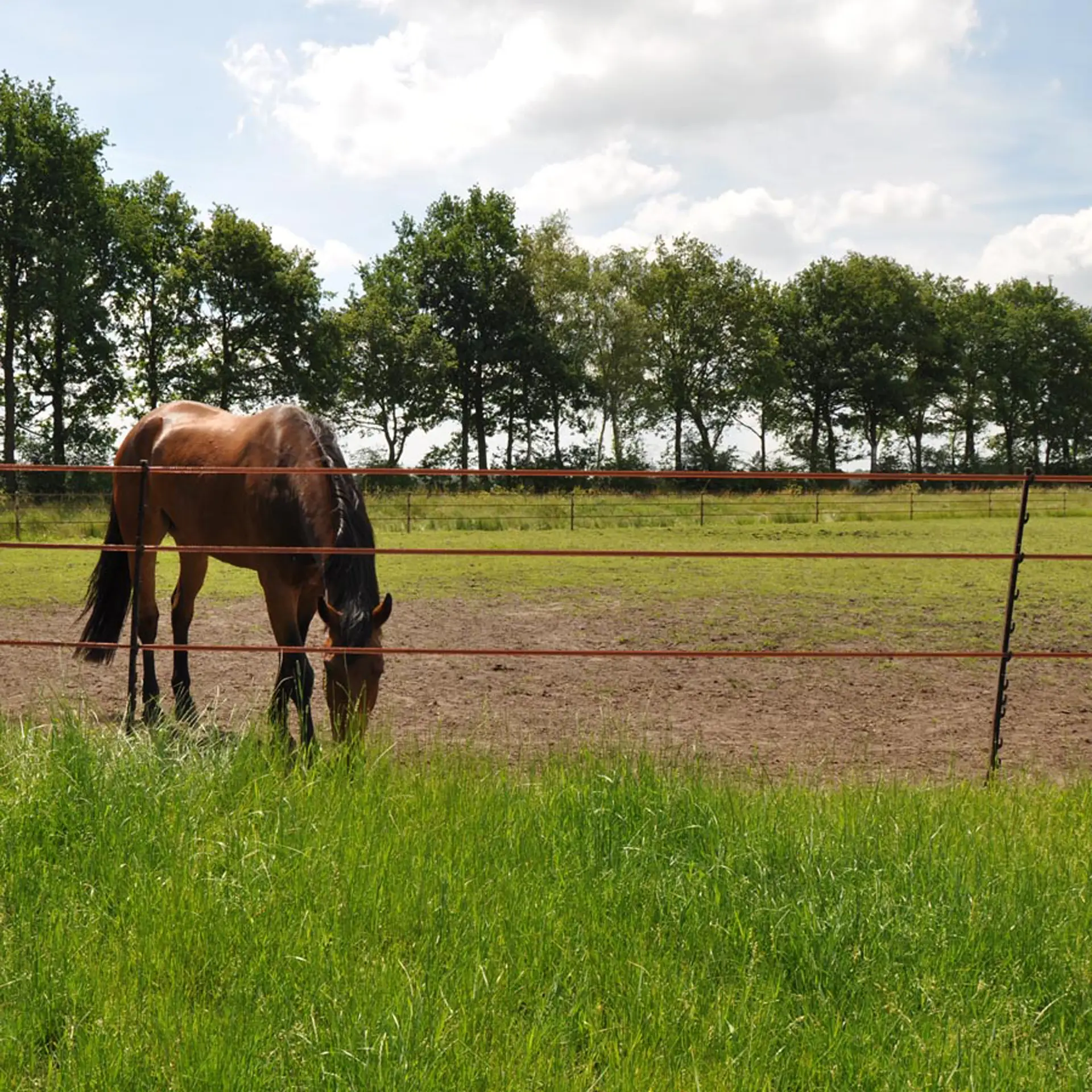

TurboLine 20 mm tape is intended for movable horse fences longer than 500 metres. The tape is extra strong due to the reinforced red side wire in the edges.

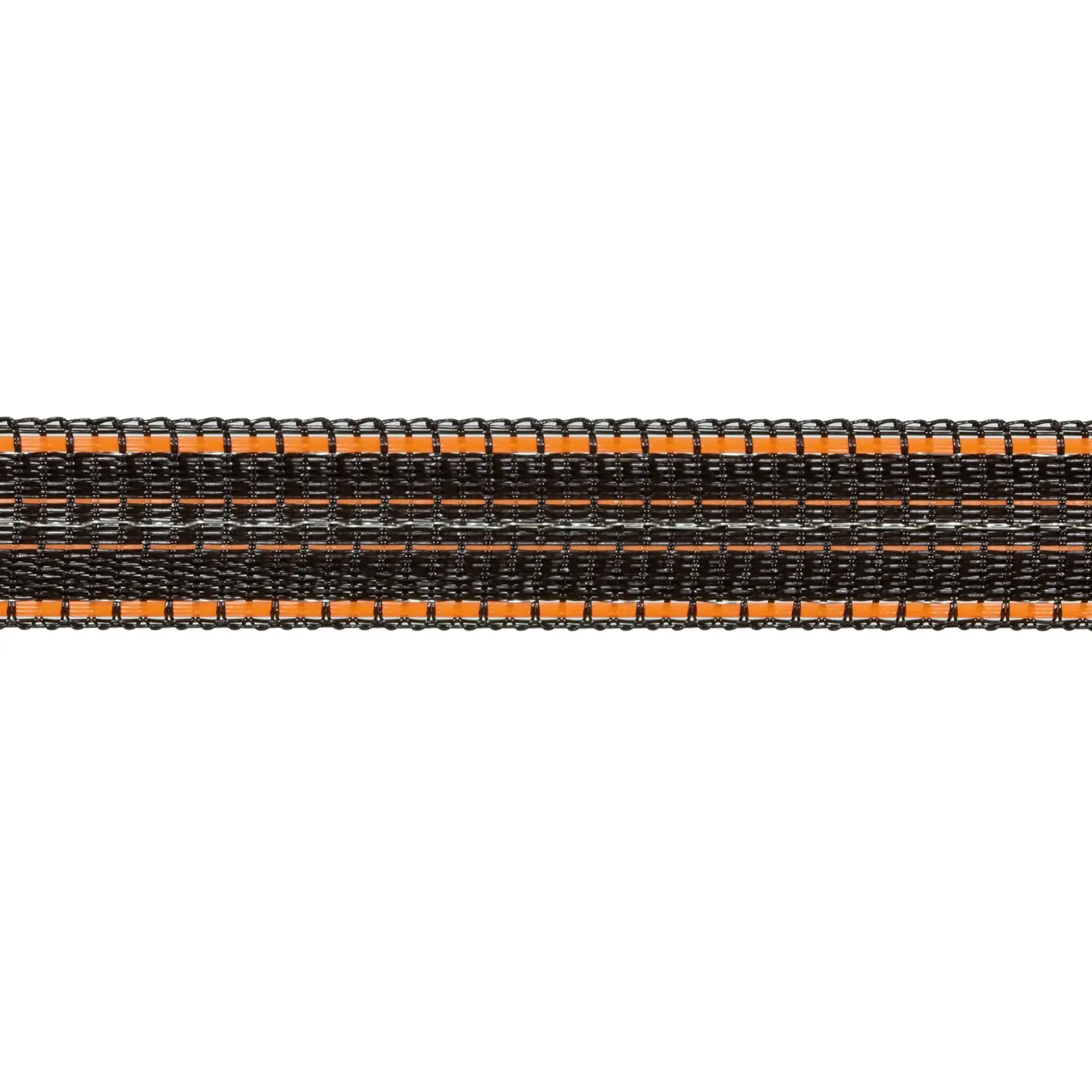

The tape has a unique composition: 3 thick stainless- steel wires and 2 light metal wires. Outstanding conductivity, current guarantee throughout the fence and 40 x better conductivity than the standard 20 mm tape! The tape has a 5-year UV warranty.

Specifications

  • Diameter mm: 20
  • No. of stainless steel wires: 3
  • No. of tinned copper wires: 2
  • Resistance ohm / meter: 0.09
  • Tensile strength kg: 200
Animal type: Cattle, Horse, Large game
Colour: Terra / orange
Duopack: -
Meters on reel (m): 200
Number of stainless steel wires: 3
Number of tinned copper wires: 2
Recommended fence length (m): > 500
Reinforced edge :
Resistance (Ohm/meter): 0,09
Tensile strength (kg): 200
UV warranty (Years): 5
Voltage at 100 m: 7600V
Voltage at 500m: 6400V
Voltage at 1000 m: 5300V
Voltage at the beginning of the fence: 8000V
Width (mm): 20
Ø plastic nylon wires (mm): 0,38
Ø stainless steel wires (mm): 2x 0,16 / 1x 0,20
Ø tinned copper wires (mm): 0,25
