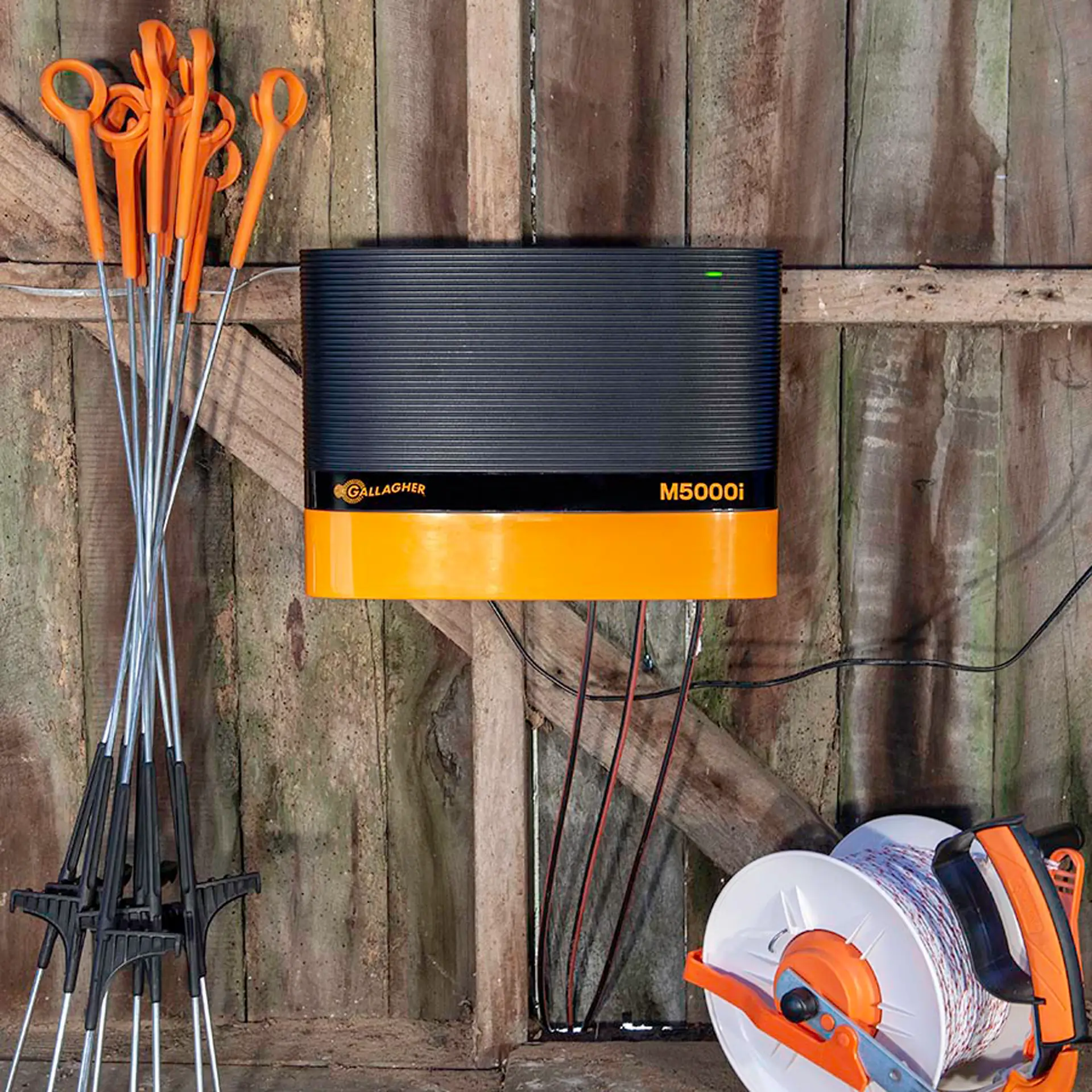

Product information "Gallagher M5000i Fence Energiser"

The M5000i is an extremely powerful, intelligent fence energiser that is suitable for multiple wire fences up to 100 km.

A unique aspect of i-series energisers is the external display - which shows all of your fence information (e.g. voltage, faults and fault location) in a convenient location up to *50 metres from the energiser. *(3m wire included)

The energiser can also be operated and turned on/off from the external display and you get immediate notification of power loss e.g if a branch has fallen onto the fence or a wire has been cut.

You switch off the fencing on site with the remote control (optional) and repair the fault quickly, you then use the optional remote control to switch the fencing on again.

The Gallagher M5000i can be expanded with various i Series accessories, including an i Series alarm system, flashing light, siren, maximum 6 fencing monitor(s) and an SMS module.

Specifications:

  • Maximum output voltage (V): 9000
  • Charging energy (J): 19
  • Maximum impulse energy (J): 15
  • Number of earthing rods required: 8 x 2 m
  • No vegetation (km) (recommended): 100
  • Light vegetation (km) (recommended): 60
  • Dense vegetation (km) (recommended): 26
  • Fence surface (ha) (recommended): 160

Downloads

Output with 500 Ohm (V): 9000
Voltage with 100 Ohm (V): 8200
Stored Energy (J): 19
Output Energy (J): 15
Single Wire Fence distance - Ideal conditions (km): 300
Multi (2) Wire Fence distance - Ideal conditions (km): 100
Multi (2) Wire Fence distance - Light conditions (km) : 60
Multi (3) Wire Fence distance - Recommended (km): 26
Grid area (Hec/Acre): 160/400
Maximum output Voltage: 9000
Power cons. min/max (W): *11/18
Device indicator light On/Off:
External display:
Easy-to-read display Power (A):
LED bar chart:
12V Battery backup: o
Easy-to-read display Output voltage (V):
Adaptive Control:
Easy-to-read display Earth voltage (V) :
Delay with load (Timedelay) :
Easy-to-read display Return voltage (V): o
Alarm indicator LED fence voltage:
Security with short-circuit:
Built-in lightning diverter:
Sound Alarm Fence-Earth:
Advised Bentonite Super Earth Kit (number of buckets): 3
Terminal Reference Earth:
Connection option external alarm-control unit: o
Full / half power option:
SMS Capable: o
Remote control: o
Recommended number of earth stakes: 9x1,7m
IPX classification: IPX4
Warranty (years): 3
Weight (Kg): 8,8

Complete with:

i Series WiFi Gateway Controller
The wifi gateway controller easily connects your iSeries energiser to your smartphone via WiFi or Bluetooth. With the free Gallagher Ag Devices app, you can easily check the status of your fence (kV & amp) and receive a notification when a fault occurs. You can also switch the energiser on and off via the app. Via the indicator lights on the controller itself, you can see at a glance check the condition of your fence.

£399.00*
Remote control for the i Series
The i Series Remote Control accurately measures fence voltages and current and finds the exact location of a fence fault quickly and easily. Once the fault is located the energiser can be turned off/ on remotely, to allow safe and convenient fence repair. The remote control is rugged and reliable with a tough, water resistant casing design. Comes with a 2- year product warranty. Read everything about the i Series here

£329.00*
i Series fence monitor solar
This fence monitor for the i Series allows you to monitor a separate area of the fence. In case of a fence failure, you will receive an alert via the external display of your i Series device or in via the app. A total of 6 fence monitors can be connected to one energiser. This device is powered by a solar panel.

£329.00*
Lead out cable XL Red 2,5mm 50m
This earth cable has heavy- duty double insulation for optimum protection. The earth cable is suitable for underground current conduction, for example near gates and passages. The aluminium- coated core has a high tensile strength and its conductivity is 4x better than that of a standard earth cable. This earth cable is also really suitable for long distances.

£99.99*
Earthstake 1,7m with earth clamp (1)
Without a proper Earth System, your energiser will not perform. Always use galvanised earth stakes. Battery Energisers: Earth Stake length 1m c/w clamp. Mains Energisers: Earth Stake length 1,7m c/w clamp. To improve the earthing of Dry- cell battery units use the 0,5m stake (c/w 3m of wire)

£24.49*
Aluminum warning sign EU
This aluminium warning sign is made of anodised aluminium. The text on the sign is particularly clear to read and it is resistant to the elements. The warning sign complies with all the statutory requirements and is printed on both sides. As this warning sign is electrified too, it is unlikely to be stolen.

£5.49*
Lightning diverter
Unique adjustable lightning diverter, suitable for all energisers. Gallagher recommends all permanent energisers should be fitted with a lightning diverter to help protect against lightning damage. Mount the lightning diverter between the fence and the energiser.

£42.99*

Also interesting:

Earth rod (1 metre, not including earth clamp)
Earthing a fence energiser is essential in order for it to deliver an effective shock. Good earthing consists of earth rods and clamps. The length and number of the earth rods required depends on the fence energiser you are using: portable energisers: minimum length 0.5 metre 12V energisers: minimum length 1 metre Mains energisers: minimum length 1,7 metres Gallagher earth rods are galvanised for long life and excellent conductivity.

£12.99*
Earth rod (1x 0.5m, including 3-metre cable)
Earthing a fence energiser is essential in order for it to deliver an effective shock. Good earthing consists of earth rods and clamps. The length and number of the earth rods required depends on the fence energiser you are using: portable energisers: minimum length 0.5 metre 12V energisers: minimum length 1 metre Mains energisers: minimum length 2 metres Gallagher earth rods are galvanised for long life and excellent conductivity. The supplied 3m cable allows all battery energisers to be adequately earthed.

£13.99*
Earthstake 1,7m with earth clamp (1)
Without a proper Earth System, your energiser will not perform. Always use galvanised earth stakes. Battery Energisers: Earth Stake length 1m c/w clamp. Mains Energisers: Earth Stake length 1,7m c/w clamp. To improve the earthing of Dry- cell battery units use the 0,5m stake (c/w 3m of wire)

£24.49*
Fault Finder
Pinpoints faults quickly and easily whatever the wire type or energiser is used. By simultaneously measuring the current flow and voltage, the FaultFinder will follow the current flow to any one of a series of faults. An important tool that can be used on any electric fence from single wire to a more complex Multi-wire installation. Prepare for the grazing season, do the Gallagher check

£164.99*
Gate grip (black, with N-hook) Compression gate handle (10)
Ideal for use in high pressure situations as the compression spring has extra strength and will not overstretch under tension.

£16.99*
Ground cable ø2.5mm (25 metres) - 35 Ohm/1km
Ground cable is used to connect the energiser to the fence and the earth rods. The cable is also used to make underground fence connections, for instance, under gates or openings. This 2.5mm ground cable should be used for distances of more than 30 metres*. The handy metre marks on the cable, makes set up easy as the measuring is done for you. *For distances less than 30 metres then 1.6mm ground cable is recommended.

£46.49*
Screw-in Insulator PromoPack (pack of 100)
With metal core. High- quality black plastic. For wooden posts. For wooden posts.

£19.99*
